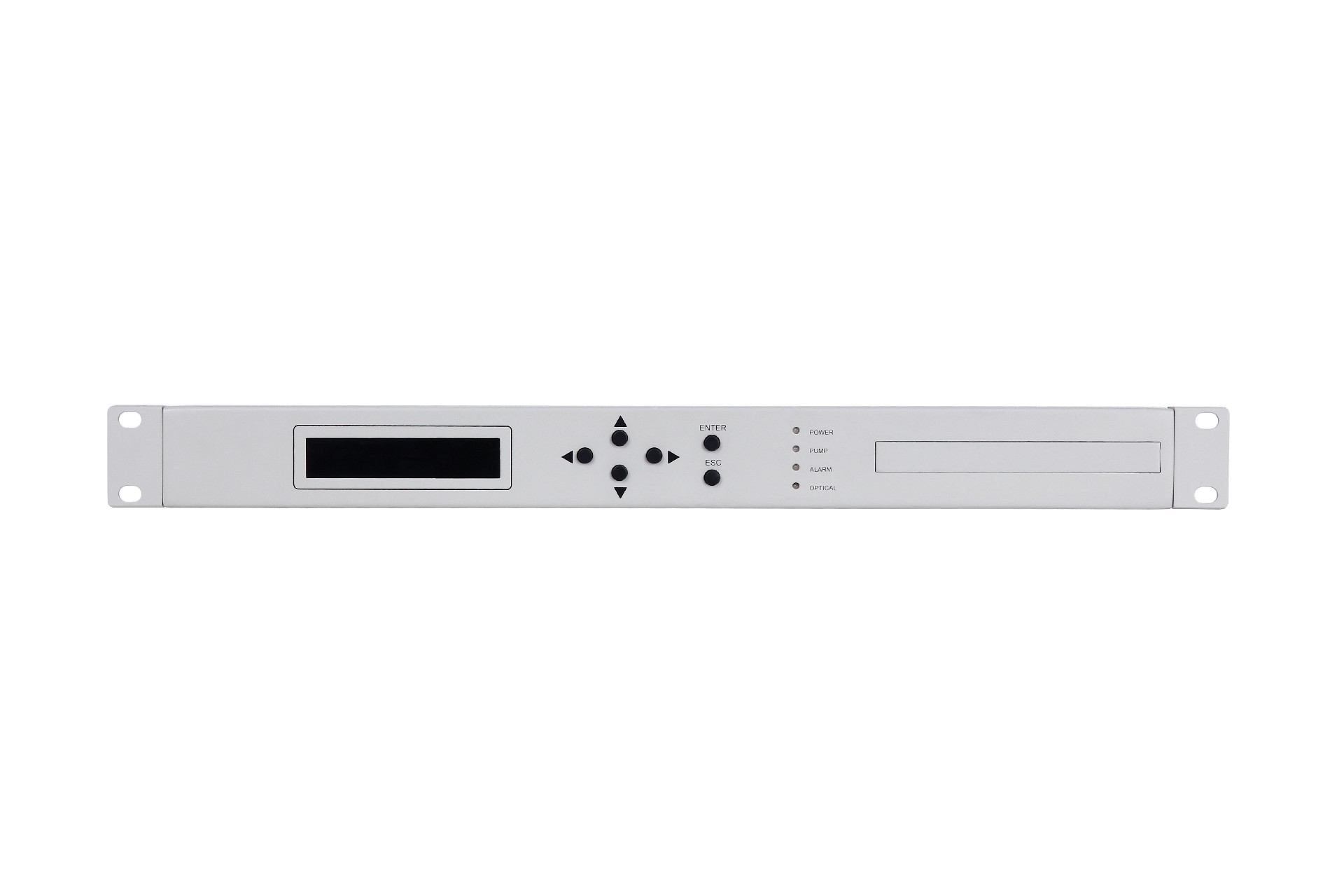

CFTX-1U-DWDM-BA

Product overviewItis mainly used in BA-1550-series 1550nm optical fiber amplifier 1550 important optical relay transmission in optical fiber communication system equipment, mainly for image signal, digital TV signal, telephone voice signals and data (or compressed data) ultra long haul transmi

產(chǎn)品詳情
資料下載

Product overview

It is mainly used in BA-1550-series 1550nm optical fiber amplifier 1550 important optical relay transmission in optical fiber communication system equipment, mainly for image signal, digital TV signal, telephone voice signals and data (or compressed data) ultra long haul transmission of signals. The product selection of imported high-performance baits fiber, the international famous brand low-noise pump laser, and built-in sound embedded automatic monitoring and control system, ensure the machine excellent performance indicators.

Features

High output power

Output power tunable

Low NF

RS-485、RS-232 network interfac

Multi power supply (Rack Mount);

AC：220V-110V；DC：-48V

Application

Access network

IP ATM SDH Network

Digital communication network

DWDM system

Specification

Product Name		Power amplifier（BA）
Parameter		Min	Typ	Max	Unit
Operating Wavelength	16 Channel	1546	1550	1561	nm
	32 Channel	1535		1562
	48 Channel	1528		1568
Input power		-10		6	dBm
Gain		14	25	33	dB
Output power				21	dBm
Noise figure			5.0		dB
Input/output Isolation		30			dB
Output Pump leakage				-30	dBm
Input/output return loss		45			dB
polarization dependent loss				0.5	dB
Polarization mode dispersion				0.5	ps
Operating Temperature		-5		55	℃
Humidity		5		95	%
Storage Temperature		-40		85	℃
power consumption				30	W
Power		-48V DC or 220V AC			V
Interface		FC/UP or others
Dimension		(W x L x H) 482.6x245x43.6			mm

Ordering inforamtion

Product

Package

Input

Power

Output Power

Power

Supply 1

Power

Supply 2

Connector

network management

EDFA

1:1U Chassis

2：BA

3：LA

4：PA

010:-10dBm

…

24:24dBm

1:110VAC

2:220VAC

3:110~220VAC

4:-48VDC

9:other

1:110VAC

2:220VAC

3:110~220VAC

4:-48VDC

9:Other

0：none

1;SC/PC

3:FC/PC

5:LC/PC

9:other

1：with

2：without
